One Stop Shop with e-Commerce M2M | IoT machine 0-24H | 24/7

  • Primary use: Tobacco products sales in HoReCa establishments
  • Prepaid Mobile Vouchers
  • Digital Signage (Video, Photo, Audio) with smart scheduling interface
  • eCommerce + Web content
  • Interactive content (Consumer Engagement)
  • Fiscal billing with printed receipts
  • Cash Payment with refund (Bills & Coins)
  • Immediate payment transaction for any product or service
  • Loyalty CARD (User Club Card)
  • Administrative Server Application for real-time tracking of transactions and products sold
  • Intended for HoReCa locations without classic Point of Sale

Practical multiverse in one device

  • Sales statistics
  • Digital signage platform
  • e-Commerce platform
  • B2B, B2C i M2M ready
  • Possibility to dispense Food or Non-Food products
  • Possibility to dispense beverages (bottles and cans)
  • Ticketing options
  • Products and services sales 0-24h | 24/7
  • ANYTIME, ANYWHERE!

Diversity in possibilities

  • RFID card administration with 4 level Authorisation (User, Admin, Service, Owner)
  • Frequent communication with server for transactions, billing, software and con
  • Sales Statistics (by time, brand, location, machine, distributor…)
  • Separate user and Administrative Interface
  • GPS location
  • Vandalism detection
  • Online Software updates Software-a
  • Onscreen User Manual
  • Receipt printing
  • Fiscal billing
  • Current Stock and cash box status printed reports
  • Multilanguage Server and Client application
  • Ticketing options
  • Dispense Food or Non-Food products
  • Dispense beverages (bottles and cans)

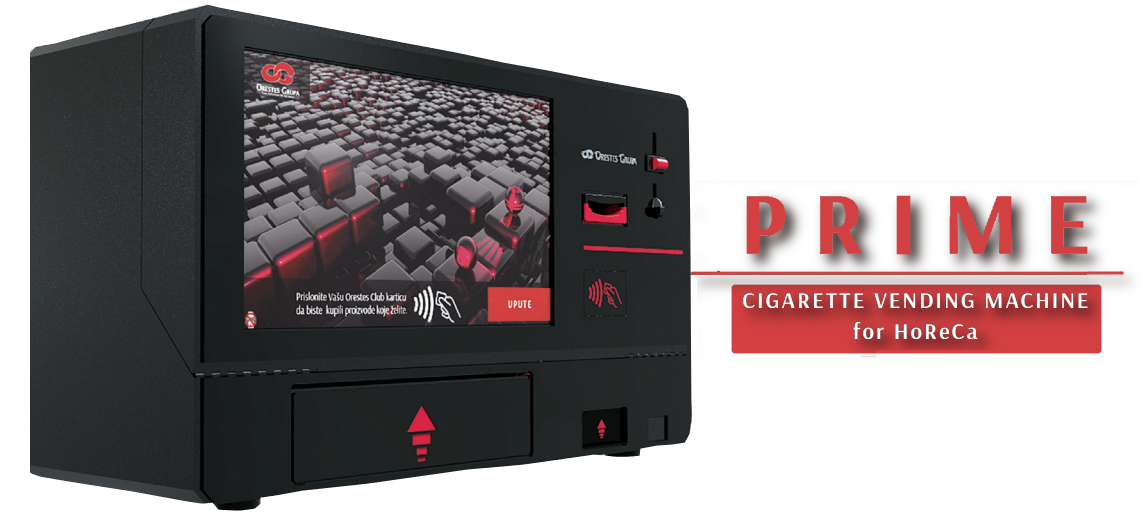

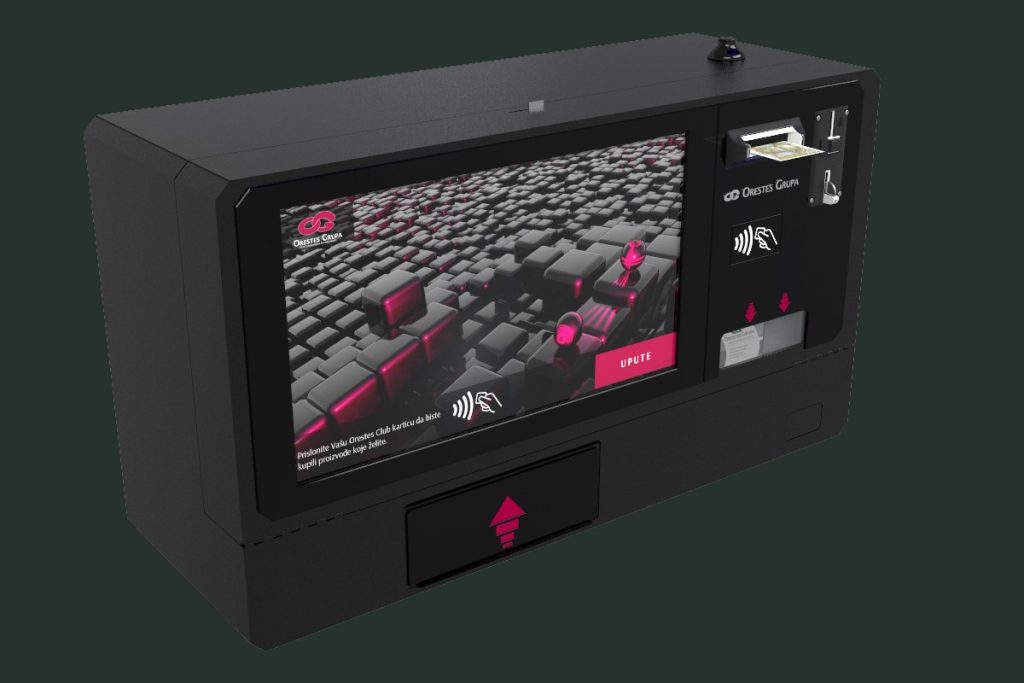

Prime CVM

  • Prime CVM is equipped with two stock cassettes with 9 columns each for up to 18 Brands
  • Rear stock capacity: 9 columns x15pcs KingSize or x17pcs 7.1135pcs KingSize or 153pcs 7.1
  • FRONT STOCK CAPACITY: 9 columns x10pcs KingSize or 12pcs 7.1 90pcs KingSize or 108pcs 7.1
  • MATERIALS- Cold rolled steel – Powder Coated – Aluminum – Powder Coated- Acrylic Glass elements
  • POWER CONSUMPTION- 230V AC – 1A | 24-12-5V DC – 150W peak- 70W standby operation
  • ELECTRONICS- Coin Acceptor (high speed with highdiscrimination)- Bill Acceptor with bill retrieval funcion(up to 30 bills)- High Capacity Smart Hopper for coin retreival- Termal receipt Printer 58mm- NFC Card reader- RGB + WHITE LED lighting- GPRS GPS SIM module- GPRS GPS high gain antenna- Speakers 2W stereo- PIR sensor (on demand)- 8Mpx camera (on demand)
  • COMMUNICATION- GSM (2G, 3G, 4G)- GPS- WiFi- BlueTooth 4.1
  • SCREENS- 23” LED backlit FullHD Touchscreen- 10.1” internal Tablet with Windows 10

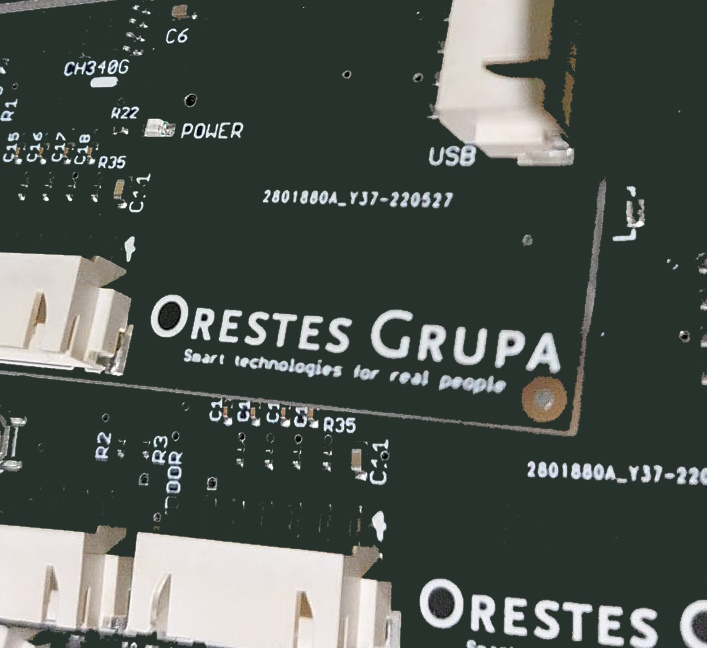

  • MAIN PLC CONTROLLER- Control for up to 120 columns or other devices- Optical product detection- RGB + WHITE (4 channel) LED lighting control- PIR sensor for thermal movement detection- Gyroscopic Accelerometer with Compass- Open Case detection- Open Product door detection- Servo motor controls for additional features

Technical specification

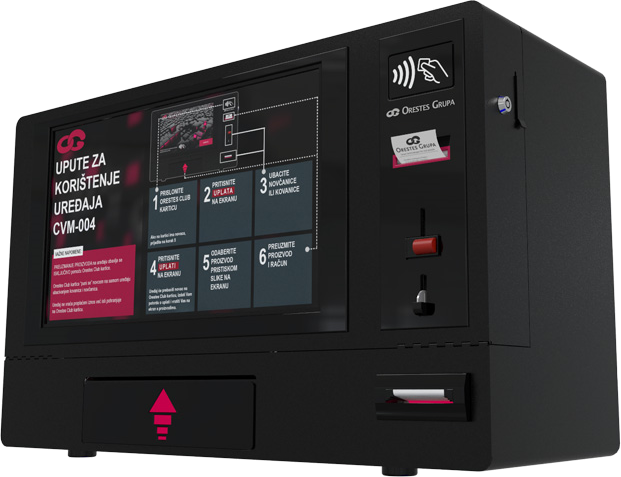

Prime CVM004

  • GPRS GPS SIM module
  • GPRS GPS high gain antenna
  • Speakers 2W stereo
  • PIR sensor (on demand)
  • 8Mpx camera (on demand)
  • COMMUNICATION- GSM (2G, 3G, 4G)
  • GPS- WiFi- Bluetooth 4.1
  • SCREENS- 23” LED backlit FullHD Touchscreen
  • 10.1” internal Tablet with Windows 10
  • MAIN PLC CONTROLLER for control for up to 120 columns or other devices
  • Optical product detection
  • RGB + WHITE (4 channel) LED lighting control
  • PIR sensor for thermal movement detection
  • Gyroscopic Accelerometer with Compass
  • Open Case detection
  • Open Product door detection
  • Servo motor controls for additional features

About Orestes grupa d.o.o.

Orestes Group Ltd. (“Orestes grupa d.o.o.”) is a growing project-oriented company that offers sale of tobacco products via self-service machines through HoReCa distribution channels.

Orestes was founded in 2008. with focus on generating ideas for the sale of tobacco products via self-service machines as a distribution channel. Taking into account restrictive laws relating to controlled distribution of tobacco products that are currently in effect in the Republic of Croatia and a somewhat more favorable legal situation in other European countries, Orestes developed a product which will not increase the sale of tobacco products, but will have a significant impact on preventing the sale of tobacco products to minors and “black market” sales.

Developing these ideas in line with legal regulations, use of available ICT technologies and some hard work and know-how of Orestes Group’s specialists and business associates, resulted in a system that significantly lowers operating costs (no need to take on new personnel) and ensures high-quality supervision of business activities (networks).

Contact us

If you would like to place one of our devices at your place of business please contact us at following address or send us an email. If you feel inclined to do so you can also give us a call. We’ll be delighted to talk about possible cooperation.

Orestes grupa d.o.o.


Kutnjački put 18
10000 Zagreb, Croatia, EU
Phone: +385(0)1 6192 410
E-mail: orestes(at)orestes.hr
